Double Spiral Wire Knitting Chain Link Fence Weaving Machine 4m Width
Chain Link Fence Weaving Machine Description
The chain link fence weaving machine is full automatic wire mesh weaving machine.For example,double wire spiral chain link fence machine,the material feeding is in wire coils by double wires.So the output of the machine is very high.The machine is full automatic,one worker can operate more than two machines,which greatly reduces the labor cost.The machine is suitable for both iron wire and PVC coated wire.The mesh hole size is determined by the mold. The machine is equipped with 2 moulds free of charge.The machine can weave a certain range of wire diameter, not only suitable for one diameter of wire. In this way, the use of the machine is more extensive.
Chain Link Fence Making Machine Feature
1. The material feeding of the machine is wire coils.Double wire spiral is double wire feeding,so the output of the machine is high.
2. The mesh hole size is usually from 20mm to 100mm.One mould can shape one mesh hole size.One machine has two free moulds.
3. The machine is equipped with a lubricant storage tank and a water pump. When the wire is formed in the mold, it needs to be lubricated with lubricating fluid to reduce friction. At the same time, it can maintain the mold and prolong the service life.
4. The knitting machine is equipped with an edge locking device. After knitting the chain link fence, the automatic edge locking device is used to lock the edge.
Chain Link Fence Making Machine Parameter
| Model | Single Wire | Double Wire |
| Wire diameter | 1.3-4mm | 1.5-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mould Dies | 2 sets mould for free | |
| Mesh length | 30m, adjustable freely as your request |
| Mesh side | Knuckled and twisted, or knuckle, or twisted |
| Raw material | Galvanized wire, PVC coated wire, etc. |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2500kg | 4200kg |
| Operation | One person can operate two or three machines |
Application
The product is wildly used as prevent for road, railway, airport, residence district, seaport, garden, feeding and husbandry.
Chain Link Fence Making Machine Detail
Double Wire Spiral
Wire Moulds

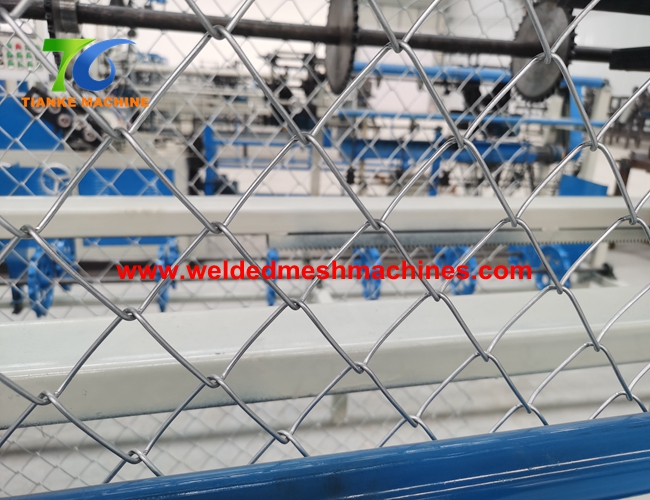

Diamond Shape
Visual Touch Screen: The control system is equipped with visual touch screen.It is just like computer.The worker only need to input the data on the touch screen.
.Moulds

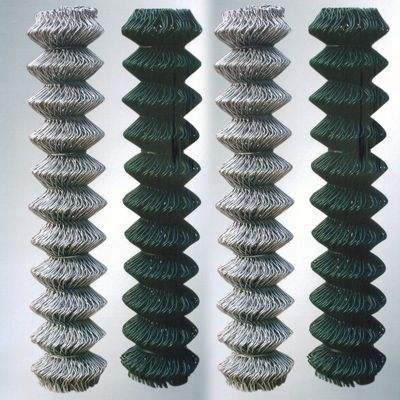

Finished Chain Link Fence
